NEW QUESTION # 38
Application developers are complaining that east-west server traffic is not being load balanced in your new data center. What are three reasons for this behavior? (Choose three.)
- A. There is insufficient spine to leaf bandwidth.
- B. ESI active/active has not been configured.
- C. Policies for load balancing have not been configured.
- D. BGP multipath is not configured.
- E. MP-BGP is not exporting the correct prefix type.
Answer: A,B,E
NEW QUESTION # 39
Which two statements are true about VRF routing instances? (Choose two.)
- A. VRF does not enable multitenancy.
- B. VRF can be used in conjunction with Layer 3 logical interfaces.
- C. Each logical Layer 3 interface can belong to only one routing instance.
- D. Each logical Layer 3 interface can belong to multiple routing instances.
Answer: B,C
NEW QUESTION # 40
You are asked to deploy an Ethernet bridging design in a data center with the criteria shown below.
-- Routing must occur on the spine devices.
- VTEPs must terminate on the leaf devices.
- Facilitate inter-VLAN communication.
-- Layer 2 gateways must be present on spine and leaf devices.
Which architecture should you use in this scenario?
- A. edge-routed bridging architecture
- B. bridge overlay architecture
- C. centrally-routed bridging architecture
- D. collapsed spine architecture
Answer: C
NEW QUESTION # 41
Host1 and host2 are connected to an EVPN signaled VXLAN overlay, and must have Layer 3 connectivity. The VNI and VLAN assignments are shown in the exhibit.
In this scenario, which two statements are true? (Choose two.)
- A. The VNI assigned to the host1 link must be same as the VNI assigned to the host2 link.
- B. A Layer 3 gateway can be configured on the leaf devices.
- C. The ESI assigned to the host1 link will be different from the ESI assigned to the host link.
- D. A layer 3 gateway can be configured on the spine devices.
Answer: B,D
NEW QUESTION # 42
You are deploying an EBGP IP fabric. In this scenario, which statement is true?
- A. Each spine should peer with every other spine using physical addresses.
- B. Each spine should peer with every other spine using loopback addresses.
- C. Each spine should peer with each leaf using loopback addresses.
- D. Each spine should peer with each leaf using physical addresses.
Answer: D
NEW QUESTION # 43
Exhibit.
A VXLAN has been created between devices leaf1 and Ieaf3.
Referring to the exhibit, which statement is true?
- A. Traffic sent from host1 to host2 will be dropped on leaf1.
- B. Traffic sent from host1 to host2 will be tagged with VLAN ID 200 when exiting Ieaf3.
- C. Traffic sent from host1 to host2 will be tagged with VLAN ID 100 when exiting Ieaf3.
- D. Traffic sent from host1 to host2 will be dropped on Ieaf3.
Answer: C
NEW QUESTION # 44
Which EVPN router type prevents BUM traffic from looping back to a multihued host?
- A. Ether auto discovery route
- B. Inclusive multicast-Ethernet tag route
- C. Ethernet segment router
- D. IP prefix route
Answer: C
Explanation:
Explanation
Type 4 Ethernet Segment Route, used for loop prevention and Designated Forwarder election. DF is the only
device allowed to forward M'cast onto a dual-homed segment
NEW QUESTION # 45
Which two statements about the seamless EVPN-VXLAN stitching interconnect gateways are correct? (Choose two.)
- A. The interconnect gateway can reside on the super spine layer of a multi-POD data center.
- B. All EVPN routes types are forwarded among interconnect gateways in a full-mesh manner.
- C. Interconnect gateways will rewrite the route target, route distinguisher. and ESI values for each stretched virtual network.
- D. IBGP is recommended for VXLAN stitching overlays.
Answer: A,B
NEW QUESTION # 46
You are configuring VXLAN. and you must ensure that all switches for the multicast groups advertise their existence and learn about other VTEPs In this scenario. which protocol will accomplish this task?
- A. EVPN
- B. OSPF
- C. PIM
- D. BOP
Answer: C
NEW QUESTION # 47
You have deployed two data centers that require a Layer 2 stretch between host1 and host2.
Referring to the exhibit, what does a Layer 2 stretch require?
- A. A VXLAN tunnel originating on the super Spine Layer in DC1 to the Super Spine Layer in DC2
- B. A VXLAN tunnel originating on the Spine Layer in DC1 to the Spine Layer in DC2.
- C. A VPLS WAN connection data centers
- D. A VXLAN tunnel originating on VTEP1 to VTEP2
Answer: D
NEW QUESTION # 48

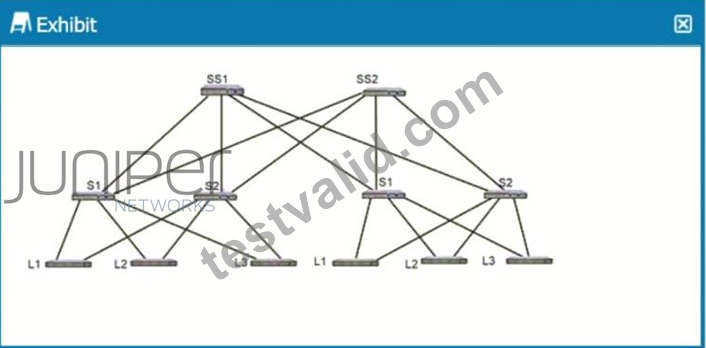

Exhibit.
Referring to the exhibit, which statement is correct?
- A. The exhibit shows a collapsed fabric architecture.
- B. The exhibit shows a 5-stage IP fabric architecture.
- C. The exhibit shows a 3-stage IP fabric architecture.
- D. The exhibit does not represent a valid fabric architecture.
Answer: D
NEW QUESTION # 49
Exhibit.
Referring to the exhibit, you have a data center with two PODs. Seamless EVPN-VXLAN stitching is used to facilitate communication between the PODs.
Which three statements are true in this scenario? (Choose three.)
- A. AVXLAN tunnel can form between L1 and L4.
- B. AVXLAN tunnel can form between L2 and S3.
- C. AVXLAN tunnel can form between L1 and L2.
- D. A VXLAN tunnel can form between S1 and S2.
- E. AVXLAN tunnel can form between L2 and S1.
Answer: A,B,C
NEW QUESTION # 50
You are designing a Layer 3 fabric underlay using EBGP. You will implement an E VPN-signaled VXLAN
overlay on the Layer 3 fabric.
In this scenario, what must you do in the underlay to ensure that the VXLAN overlay will be able to function
properly?
- A. Each device in the underlay should advertise its loopback address
- B. The underlay should advertise the host connected interlaces on all leaf device
- C. The underlay should support the PIM protocol
- D. The underlay should be configured with a separate VRF tor each potential tenant
Answer: A
NEW QUESTION # 51
What happens when a packet is encapsulated by a VXLAN before being placed in the overlay?
- A. The VLAN-ID is placed in the VXLAN header.
- B. The TTL is decremented by two and placed in the VXLAN header.
- C. The QoS marketing are placed in the VXLAN header.
- D. A VNI that maps to the VLAN-ID placed in the VXLAN header.
Answer: D
NEW QUESTION # 52
You are building an IP fabric underlay network for your new data center. You must ensure that you have predictable load-balancing behavior throughout your network. According to Juniper Networks, what are two best practices that should be followed in this scenario? (Choose two.)
- A. All leaf devices must be identical to the spine device models including the same installed line cards.
- B. Every leaf device should have an identical uplink to every spine device.
- C. Every leaf device should have an identical uplink to every other leaf device.
- D. All spine devices should be identical models including the same installed line cards.
Answer: B,D
NEW QUESTION # 53
You manage a data center with a 5-stage EVPN-VXLAN IP fabric. You notice that there are suboptimal paths used between the leaf and spine as well as the spine and super spine. What is one way to solve this issue?
- A. Configure the spine layer for EBGP and the leaf layer for IBGP
- B. Configure the spine layer so that all spines in a POD share the same ASN.
- C. Configure the super spine and spine layers to all use the same ASN.
- D. Configure the leaf layer so that all leaf devices share the same ASN.
Answer: A
NEW QUESTION # 54

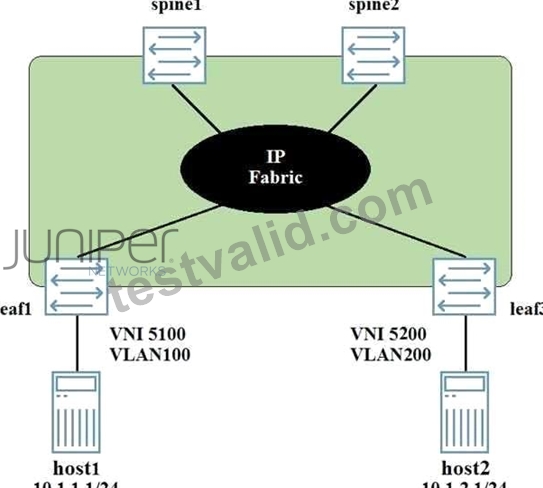

You have deployed a VXLAN as shown in the exhibit Leaf1, leaf3, spine1, and spine2 have been configured
as VTEPs. Host1 cannot communicate with host2.
Referring to the exhibit, how would you solve this problem?
- A. Host1 and host2 must be placed in the same VRF
- B. A DCI connected must be created between the VLANs
- C. The VLAN ID on the connected to host2 must be changed to VLAN 100
- D. A layer 3 VXLAN gateway must be configured on at least on at least one of the devices
Answer: D
Explanation:
Explanation
You need an L3 gateway to route between those two different subnets/VLAN's
NEW QUESTION # 55
You have deployed two data centers that require a Layer 2 stretch between host1 and host2.
Referring to the exhibit, what does a Layer 2 stretch require?
- A. A VXLAN tunnel originating on the super Spine Layer in DC1 to the Super Spine Layer in DC2
- B. A VXLAN tunnel originating on the Spine Layer in DC1 to the Spine Layer in DC2.
- C. A VPLS WAN connection data centers
- D. A VXLAN tunnel originating on VTEP1 to VTEP2
Answer: D
NEW QUESTION # 56
You are asked to configure VXLAN for you c data center using multicast to exchange VTEP information?
In this scenario, which two configuration parameters must match on the VTEPs in the same VXLAN segment? (Choose two.)
- A. VLAN ID
- B. Multicast group
- C. VNI
- D. Routing instance name
Answer: B,C
NEW QUESTION # 57
......
